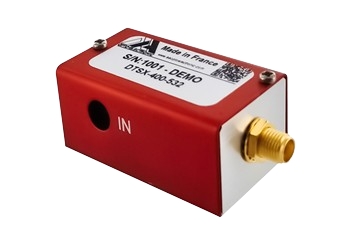

1-Achsen AOD / 532 nm

Hersteller: AA OPTO ELECTRONIC Artikelnummer: DTSX-400-532

Kategorie: 1-Achsen

1-Achsen Deflektor | Apertur 7,5 x 7,5 mm² | Wellenlänge 532 nm | Scanbereich 41 mrad | Beugungseffektivität > 70 %

5.435,00 €

exkl. 19% USt. , zzgl.

Lagermäßig nicht vorrätig

Beschreibung
Benachrichtigen, wenn verfügbar

This high resolution deflector operate with Te0₂ shear mode and hence offers a large scan angle, high resolution and large aperture of 7.5 mm. Associated to the appropriate RF-driver, the AOD provide high precision and accuracy which is required for most application such as optical tweezers, biomedical diagnostics and many others.

Wesentliche Spezifikationen
Parameter	Rating
Acoustic velocity	650 m/s
Operation wavelength	532 nm
Rise time	1 µs/mm beam
Input/ Output polarization	Linear / 90° flip per axis
Access time	1.5 µs/mm beam
Max. scan angle	41 mrad
Frequency bandwidth	50 MHz
Diffraction efficiency	Typ. > 70 %
Access time	1.5 µs/mm beam
Max. optical power Density	5 W/mm²
Max. RF-power	1 W
