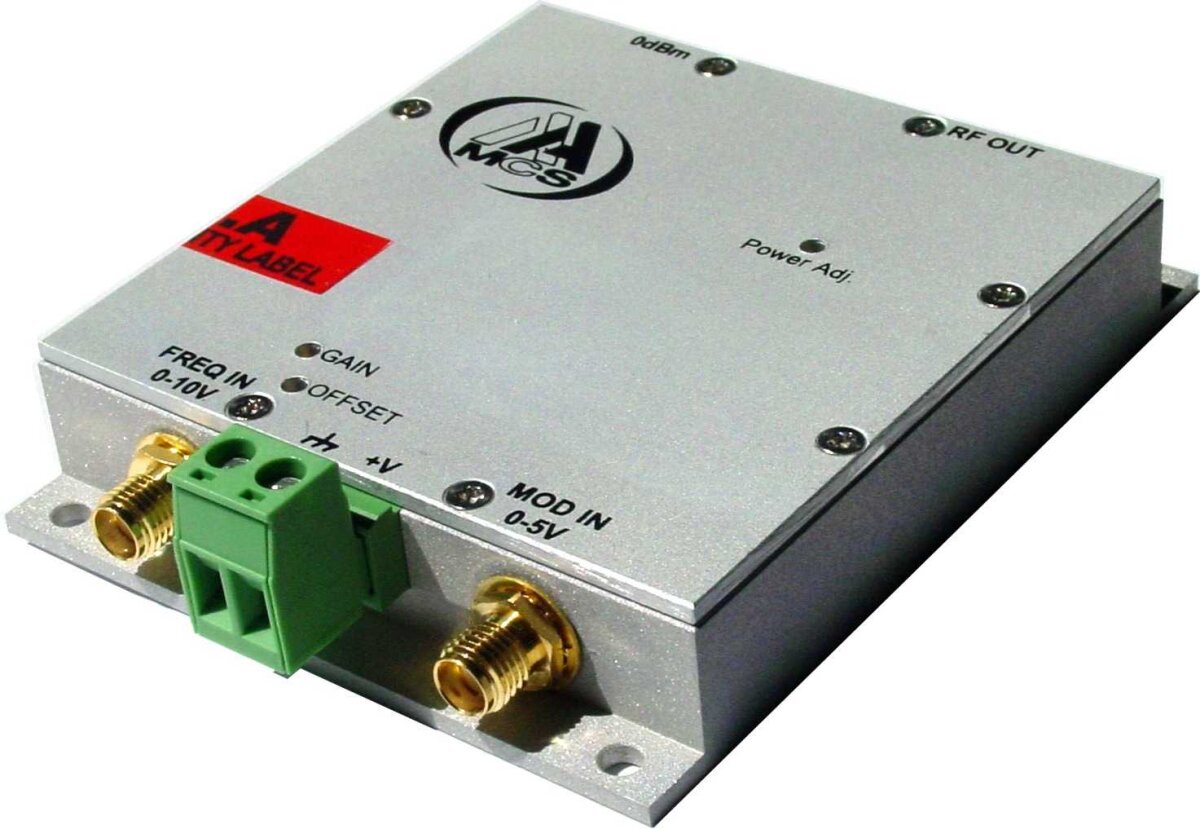

VCO / 60 - 110 MHz

Hersteller: AA OPTO ELECTRONIC Artikelnummer: DRFA10Y-B-0-60.110

Kategorie: Variable Frequenzquellen

Voltage controlled oscillator (VCO) | 60 - 110 MHz | Frequenzkontrolle analog 0 - 10 V | Amplitudenkontrolle analog 0 - 5 V | Frequenzreferenzausgang

1.199,00 €

exkl. 19% USt. , zzgl.

Lagermäßig nicht vorrätig

The VCO (Voltage Controlled Oscillator) is an analog device, suitable for general purpose applications (raster scan, or random access). The frequency and the anplitude are controlled via external analog signal.

Typically, an additional power amplifier will be required to generate the necessary RF-power level for the AO device.

Main specifications
Parameter	Rating
Frequency range	60 - 110 MHz
Output RF-power	0 dBm
Frequency stability	Typ. +/- 50 ppm/°C
Frequency control	analog 0 - 10 V/1 kOhm
Amplitude control	analog 0 - 5 V/50 Ohm
Rise- / Fall time (10 - 90 %)	< 10 ns
Sweeping time	< 1 µs (Fmin - Fmax)
Cooling	Conduction through baseplate
Power supply voltage	24 VDC
