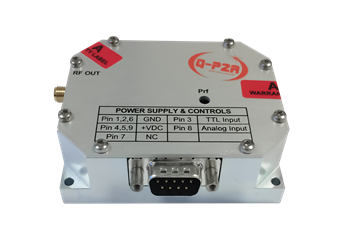

Q-Switch Treiber / QMODP2A40,68-B-43

Hersteller: AA OPTO ELECTRONIC Artikelnummer: 1026-00010

Kategorie: Q-Switch Treiber

40,68 MHz Q-Switch Treiber | 20 W | Modulationseingänge analog 0-5 V + TTL | 24 VDC Spannungsversorgung | Kompaktes Gehäuse

1.020,00 €

exkl. 19% USt. , zzgl.

Sofort verfügbar
Lieferzeit: 3 - 5 Werktage (DE - Ausland abweichend)

Beschreibung

These drivers based on quartz oscillators, produce a fixed stable and accurate RF frequency signal. The built in amplifier delivers the necessary RF power up to 20 W.

These drivers are designed to have low current consuption and low heat dissipation.

The RF output power can be externally modulated with a TTL and an analog 0-5V signal.

Main specifications
Parameter	Rating
Carrier frequency	40.68 MHz
Output RF-power	20 W
Frequency stability	Typ. +/- 1 ppm/°C
Frequency accuracy	< 50 ppm
Digital Control	TTL /1 kOhm / Pull down
Analog control	0 - 5 V / 1 kOhms / Pull down (Full analog control)
Rise- / Fall time (10 - 90 %)	< 50 ns (typ. 30 ns)
Output impedance	50 Ohms
Extinction Ratio	Typ. 60 dB
Cooling	Conduction through baseplate
Power supply voltage	24 VDC (typ. 1.5 A)
Size / Weight	80 x 60 x 23 mm³ / 170 g
Class	B
