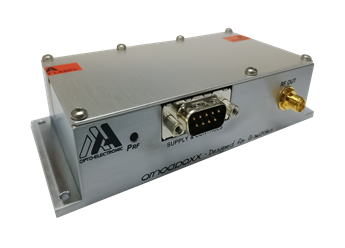

Q-Switch Treiber / QMODP0A40,68-BFAC-43

Hersteller: AA OPTO ELECTRONIC Artikelnummer: 1027-00056

Kategorie: Q-Switch Treiber

40,68 MHz Q-Switch Treiber | 20 W | Modulationseingänge analog 0-5 V + TTL | 24 VDC Spannungsversorgung

1.050,00 €

exkl. 19% USt. , zzgl.

Knapper Lagerbestand
Lieferzeit: 3 - 5 Werktage (DE - Ausland abweichend)

Beschreibung

These drivers based on quartz oscillators, produce a fixed stable and accurate RF frequency signal. The built in amplifier delivers the necessary RF power to drive an air cooled Q-switch up to 20 W.

The RF output power can be externally modulated with a TTL and an analog 0-5V signal. Standard output power is up to 20W, but can be reduced on request. Standard power supply is 24VDC.

Main specifications
Parameter	Rating
Carrier frequency	40.68 MHz
Output RF-power	20 W
Frequency stability	Typ. +/- 1 ppm/°C
Frequency accuracy	< 50 ppm
Digital Control	TTL/1 kOhm (Pull down)
Rise- / Fall time (10 - 90 %)	< 50 ns (typ. 35 ns)
Output impedance	50 Ohms
Extinction ratio	> 45 dB
Cooling	Conduction through baseplate
Power supply voltage	24 VDC (typ. 1.7 A @20 W)
