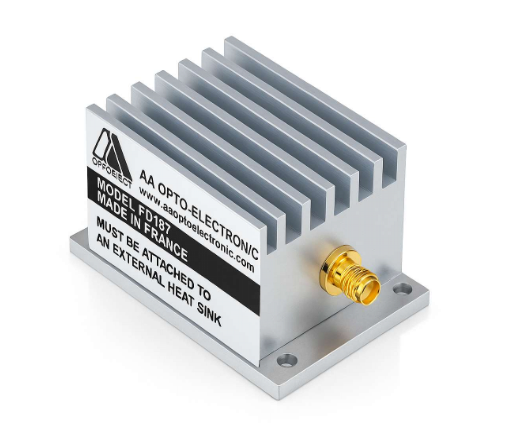

Low noise HF-Verstärker 2,5 W

Hersteller: AA OPTO ELECTRONIC Artikelnummer: AMPB-B-34-10.500-LN01

Kategorie: HF-Verstärker

Low Noise HF-Verstärker | 2,5 W | 10 - 500 MHz | 24 VDC Spannungsversorgung

910,00 €

exkl. 19% USt. , zzgl.

Lagermäßig nicht vorrätig
Lieferzeit: 2 - 3 Wochen (DE - Ausland abweichend)

Beschreibung

This power amplifier is made for acousto-optic applications for which noise figure is a concern. Designed to be low noise, the frequency range covers 10MHz up to 500 MHz. In association with a VCO driver or a DDS driver, it will provide the necessary RF power to drive an acousto-optic device up to 2.5 W. It will be used particularly for quantum computing and low noise applications.

Main specifications
Parameter	Rating
Frequency range	10 - 500 MHz
Gain	Typ. 42 dB
Gain flatness	Typ. +/- 0.5 dB

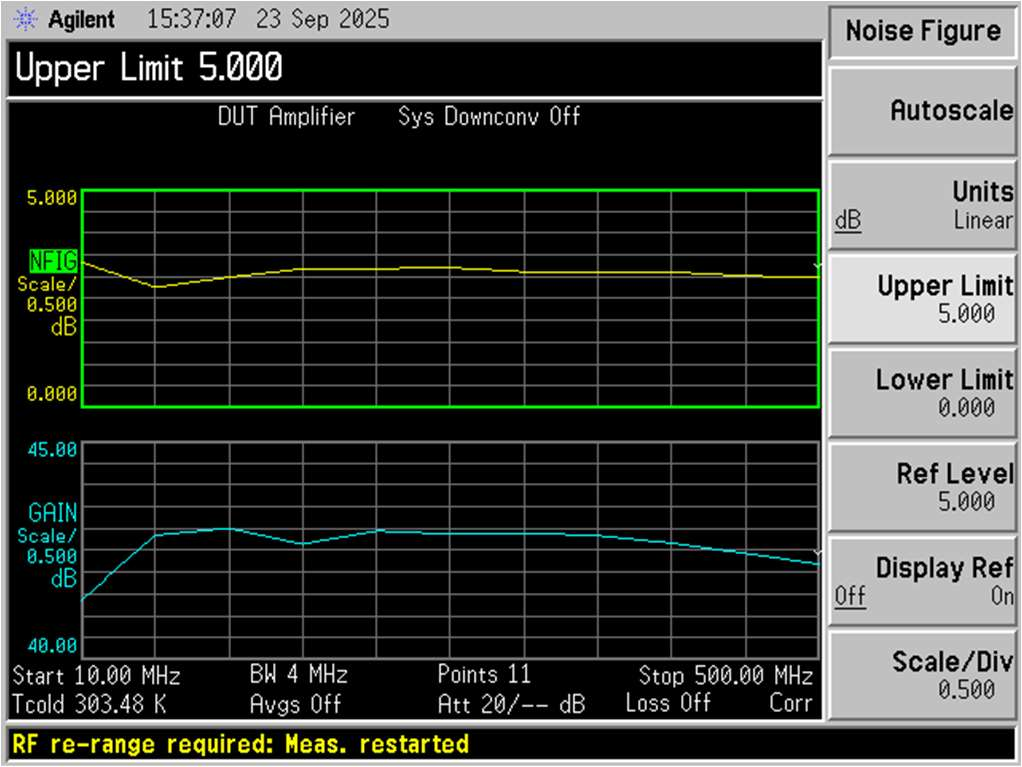

Noise figure	Typ. 3 dB
Output RF-power	34 dBm
Input / Output impedance	50 Ohms
Power supply voltage	24 VDC
Max. required current	520 mA
Cooling	Conduction through baseplate
