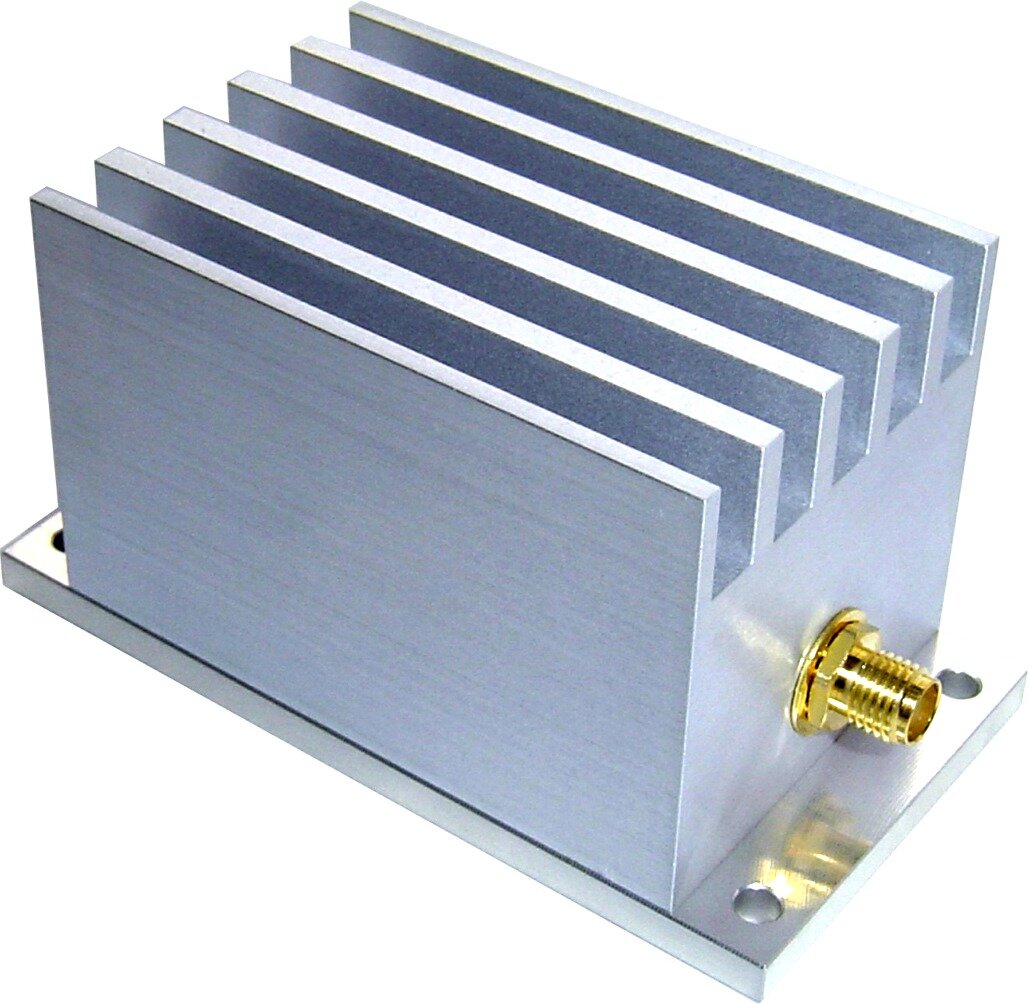

HF-Verstärker 4 W

Hersteller: AA OPTO ELECTRONIC Artikelnummer: AMPB-B-36-10.500

Kategorie: HF-Verstärker

4 W HF-Verstärker | 10 - 500 MHz | 24 VDC Spannungsversorgung

1.120,00 €

exkl. 19% USt. , zzgl.

Sofort verfügbar
Lieferzeit: 3 - 5 Werktage (DE - Ausland abweichend)

Beschreibung

This power amplifier is made for general purpose, covering frequency ranges up to 500 MHz. In association with a VCO driver or a DDS driver, they will provide the necessary RF power to drive an acousto-optic device up to 4 W.

Main specifications
Parameter	Rating
Frequency range	10 - 500 MHz
Gain	Typ. 42 dB
Gain flatness	Typ. +/- 0.5 dB
Output RF-power	4 W
Input / Output impedance	50 Ohms
Power supply voltage	24 VDC
Max. required current	560 mA
Cooling	Conduction through baseplate
