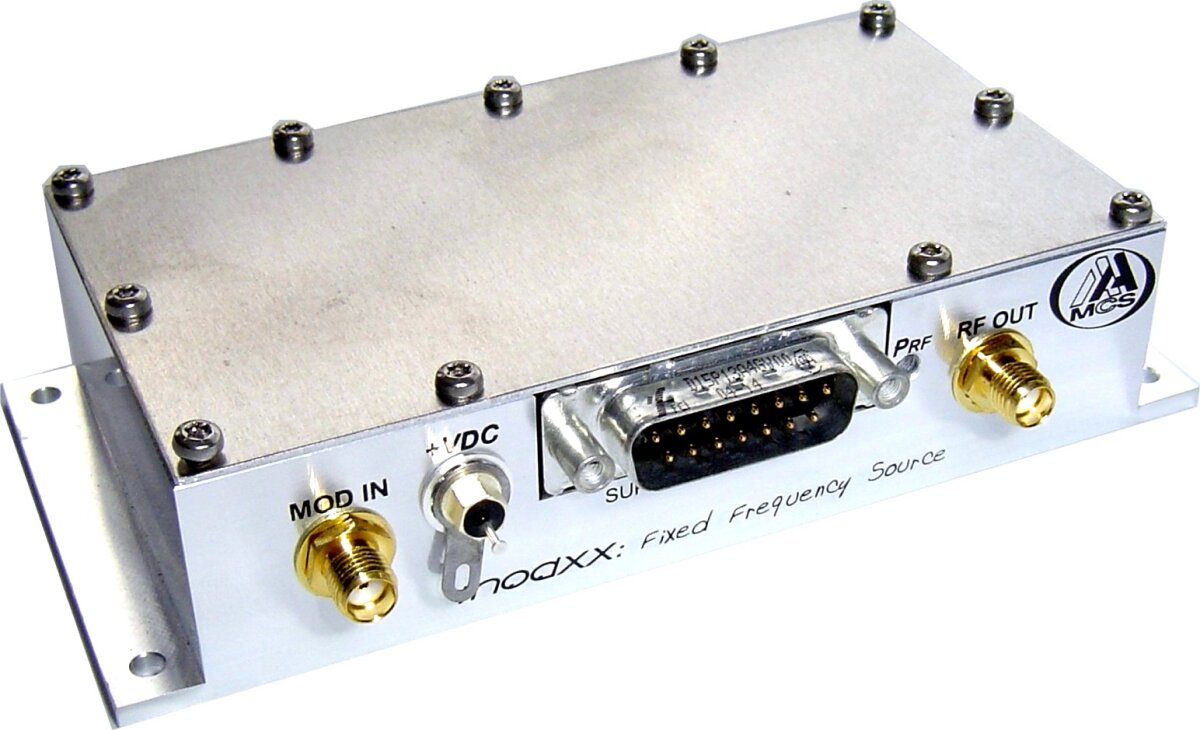

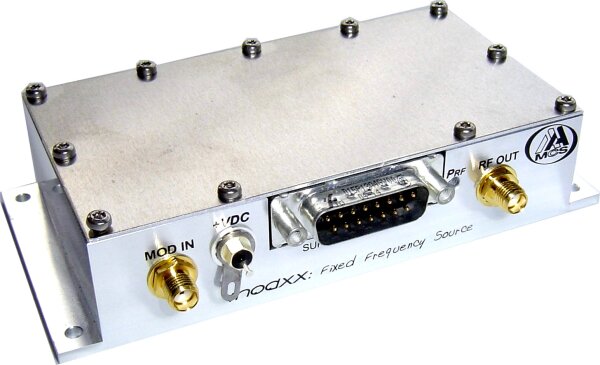

HF-Treiber 110 MHz / 2,5 W

Hersteller: AA OPTO ELECTRONIC Artikelnummer: MODA110-B41k51k-344575

Kategorie: Festfrequenzquellen

110 MHz Treiber | 2,5 W Ausgangsleistung | Modulationseingänge analog 0-5 V/1 kOhm + TTL/1 kOhm | 24 VDC Spannungsversorgung

730,00 €

exkl. 19% USt. , zzgl.

Sofort verfügbar
Lieferzeit: 3 - 5 Werktage (DE - Ausland abweichend)

Beschreibung

These drivers based on quartz oscillators, produce a fixed RF frequency signal. Drivers can be provided at any frequency from 10 to 3 GHz. All models use crystal controlled oscillators. The RF output can be externally modulated (AM). The settling time varies from 2 ns to 100 ns depending on the fixed frequency and RF power.

Usually the driver is coupled internally to a power amplifier; if the output power required is very high then the amplifier will be provided separately, offering RF powers up to 500 W CW.

Main specifications
Parameter	Rating
Carrier frequency	110 MHz
Output RF-power	2.5 W
Frequency stability	Typ. +/- 1 ppm/°C
Modulation input	analog 0 - 5 V/1 kOhm + TTL/1 kOhm
Rise- / Fall time (10 - 90 %)	< 8 ns
Output impedance	50 Ohms
Extinction ratio	analog 45 dB / TTL 75 dB
Cooling	Conduction through baseplate
Power supply voltage	24 VDC
