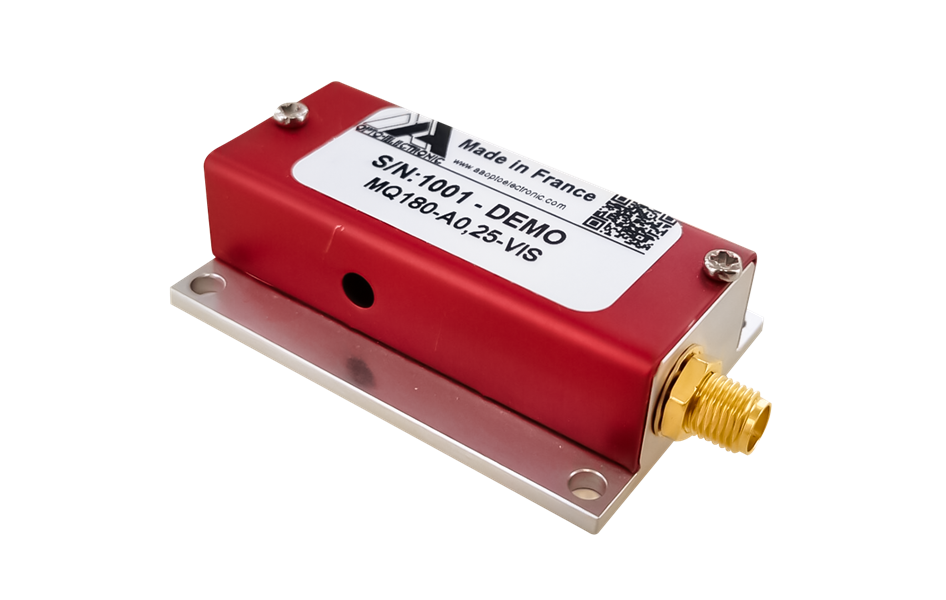

AOM / 440 - 670 nm

Hersteller: AA OPTO ELECTRONIC Artikelnummer: MQ180-A0,25-VIS

Kategorie: 450 - 700 nm

180 MHz AOM | SiO2 | Apertur 0,25 x 1 mm² | Anstiegszeit 110 ns/mm | 440 - 670 nm

1.940,00 €

exkl. 19% USt. , zzgl.

Lagermäßig nicht vorrätig
Lieferzeit: ca. 4 Wochen (DE - Ausland abweichend)

Beschreibung

These modulators have been specially designed for high power and fast rise time application. The intended application can be amplitude modulation as well as frequency shifting (fixed and variable) or low-resolution deflection.

Wesentliche Spezifikationen
Parameter	Rating
Material	Fused Silica [L]
Acoustic velocity	5960 m/s
Wavelengths range	440 - 670 nm
Carrier frequency	180 MHz
Rise time	110 ns/mm beam
Input/ Output polarization	Linear vertical
Diffraction efficiency	Typ. 80 %
Min. rise time	10 ns (@0.09 mm beam)
Active aperture	0.25 x 1 mm²
Separation angle	13 mrad
Max. optical power Density	100 W/mm²
Max. RF-power	4 W
