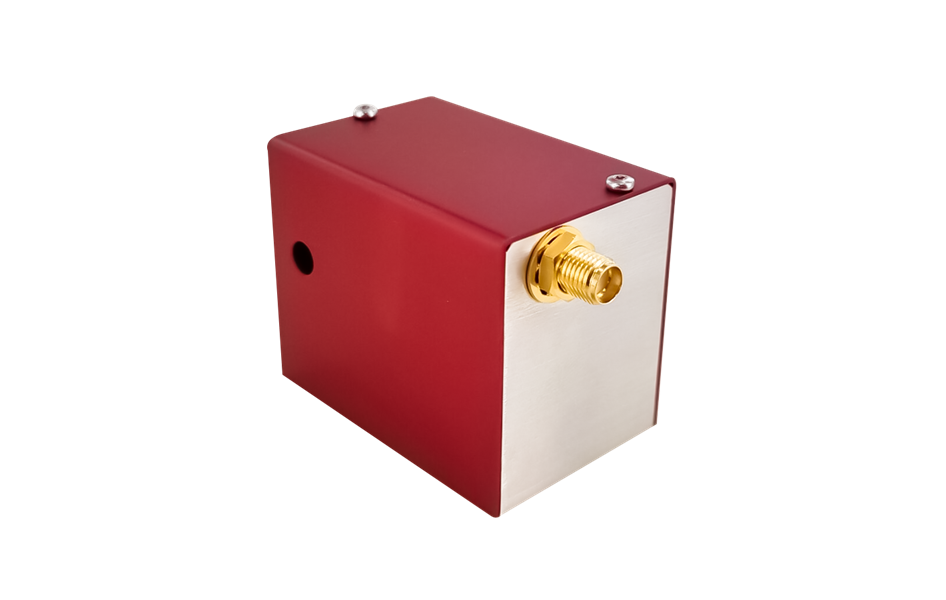

AOM / 244 - 300 nm

Hersteller: AA OPTO ELECTRONIC Artikelnummer: MQ200-A1,5-244.300-Br

Kategorie: 240 - 450 nm

2.625,00 €

exkl. 19% USt. , zzgl.

Lagermäßig nicht vorrätig
Lieferzeit: ca. 4 Wochen (DE - Ausland abweichend)

Beschreibung

These modulators have been specially designed for deep UV applications. They are made of fused Silica UV grade with Brewster incidence and can operate in the range of 244 to 300 nm. Applications can be amplitude modulation, pulse picking or fixed/variable frequency shifting.

Wesentliche Spezifikationen
Parameter	Rating
Material	Fused Silica [L]
Acoustic velocity	5960 m/s
Wavelengths range	244 - 300 nm
Carrier frequency	200 MHz +/- 15 MHz
Rise time	110 ns/mm beam
Input/ Output polarization	Linear parallel / linear parallel
Transmission	Brewster incidence angle
Diffraction efficiency	Typ. 85 % (@200 MHz)
Min. rise time	55 ns
Active aperture	1.5 x 2 mm²
Separation angle	8.2 mrad
Max. RF-power	4 W
